Repository Structure

The TableVault repository stores and organizes all data and code transparently within your local file system. This design allows you to view files directly and simply transfer in-progress workflows across devices.

TableVault Repository

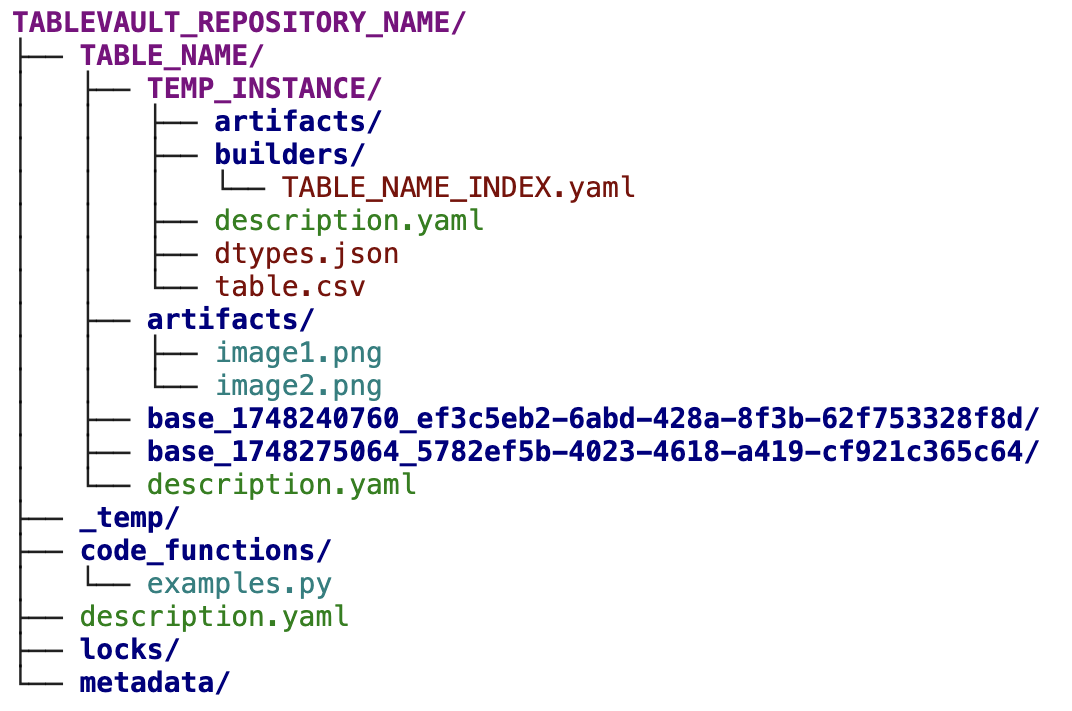

The following diagram illustrates the internal storage structure of a TableVault repository:

Internal TableVault Structure

TableVault File Structure

Direct File Edits

While the files are transparently exposed, directly editing files is generally discouraged - with two exceptions: Builder (YAML) and Python code files may be modified using an external editor. To help prevent accidental modifications on Unix systems, TableVault sets certain files to read-only. While this does not stop intentional changes, it serves as a safeguard against common mistakes.

TableVault Instance

A TableVault instance represents a dataframe with its associated metadata and optional artifacts. All files relevant to an instance are stored in a dedicated instance folder. There are two types of instances:

  • Temporary Instance: An instance that has not yet been executed and cannot be queried. It is created with create_instance() and contains metadata, a description, and builder files. The external_edit parameter specifies whether the instance will be built internally by TableVault (False) or populated by an external process (True).
  • Materialized Instance: An instance that has been executed and is indexed by TableVault. Its dataframe is read-only. If the instance is active, its data and metadata can be fetched via the API. The code functions and builder files used at execution are recorded. Materialized instances are versioned by a timestamp and an optional version string.

A free-form description can be added via the create_instance() function.

Table Folder

In TableVault, a "table" is a semantic collection of instances that can be referenced by the same name. All instances of a table are stored together in the same folder. In many API functions, the latest instance of a table can be retrieved using only the table_name reference.

Instances under the same table can share additional properties set during table initialization:

  • If allow_multiple_artifacts is set to False, only the latest instance can be queried, and only its artifacts are stored.
  • If has_side_effects is set to True, all other instances of the table become un-queryable the moment one instance begins execution. This is useful if an operation invalidates previous versions.

Examples of tables include a collection of instances testing different model prompts, a repository of scientific papers, or evolving versions of an embedding model. A free-form description can be added via the create_table() function.

Metadata

A TableVault repository stores various metadata files. A detailed list of these files and their functions can be found in Advanced.
