Builders, Python Functions, TableReference Strings, and Artifacts

For simple examples of how to use builders to generate an instance, check out Basic Workflow and Worflow with Artifacts.

Creating Instances From Builders

TableVault instances are typically constructed and modified through a series of orchestrated steps. At the heart of this process are builders files, which are configuration files that define the scope of data transformations, and Python files, which define the data transformation itself. This construction uses TableReference strings to link fetch data from previous instances, and can optionally generate TableVault artifacts to store arbitrary files.

Execution of instances typically are initialized with the execute_instance() function. Alternatively, to bypass the process, you can also externally generate your dataframe and artifacts, and add them into your TableVault repository using the write_instance() function. This is not typically recommended since execution and data lineage information is lost.

Builders

Every table instance executed by TableVault possesses its own set of builder files. You can add builders to a temporary instance by copying them from a previous origin instance, specifying builder names during create_instance(), or using the create_builder_file() function. Each builder uniquely modifies a set of specified columns in the resulting dataframe. This is specified by the mandatory changed_columns field. For a full list of builder fields, please read the Builders Guide.

Builders do not contain the data transformation logic themselves. Instead, they point to the Python functions that perform the actual work. This connection is established through the python_function and code_module fields in the builder's YAML file.

  • code_module: This field specifies the Python file containing the transformation function. This module must be added to TableVault using create_code_module().
  • python_function: This is the name of the function within the code_module that will be executed. This function receives the arguments defined in the arguments section of the builder file.

When executing an instance (with the execute_instance() function), TableVault first runs the IndexBuilder configuration to generate the initial set of rows. Subsequent ColumnBuilders builders are executed based on internal column dependencies. These dependencies are automatically extracted by parsing for <<self.COLUMN_NAME>> Table Reference values in each file. Note that cyclic dependencies will result in an error.

Data Caching

If the executing instance is copied from a previous instance, TableVault reuses data unless disabled by setting force_execute to be True in execute_instance(). If the builder file, code file, and table dependencies have not changed from the previous instance, the rows with the same primary key columns are directly duplicated from the origin instance.

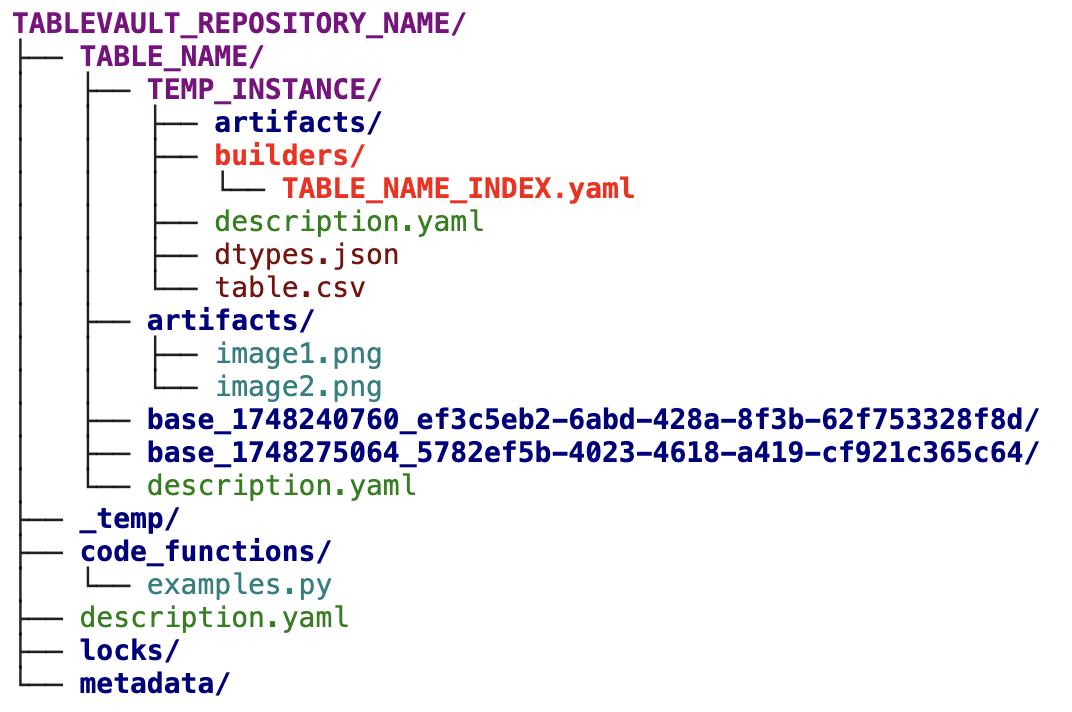

Physical Location

Internal TableVault Builders

TableVault Builders Location

Custom Python Functions

Python functions execute the logic defined by builders. They reside in the repository-level code_function/ directory. You can create or copy Python files into this folder using create_code_module(). Once created, they are editable directly.

Functions must adhere to specific contracts:

  • dataframe: Return a complete pd.DataFrame.
  • row-wise: Return a single row.
  • generator: Yield rows for streaming into DataFrames.

For successful execution, all required input arguments for the Python function must be defined in the builder file.

For a list of default Python functions that come with TableVault, please visit the Default Code Function API.

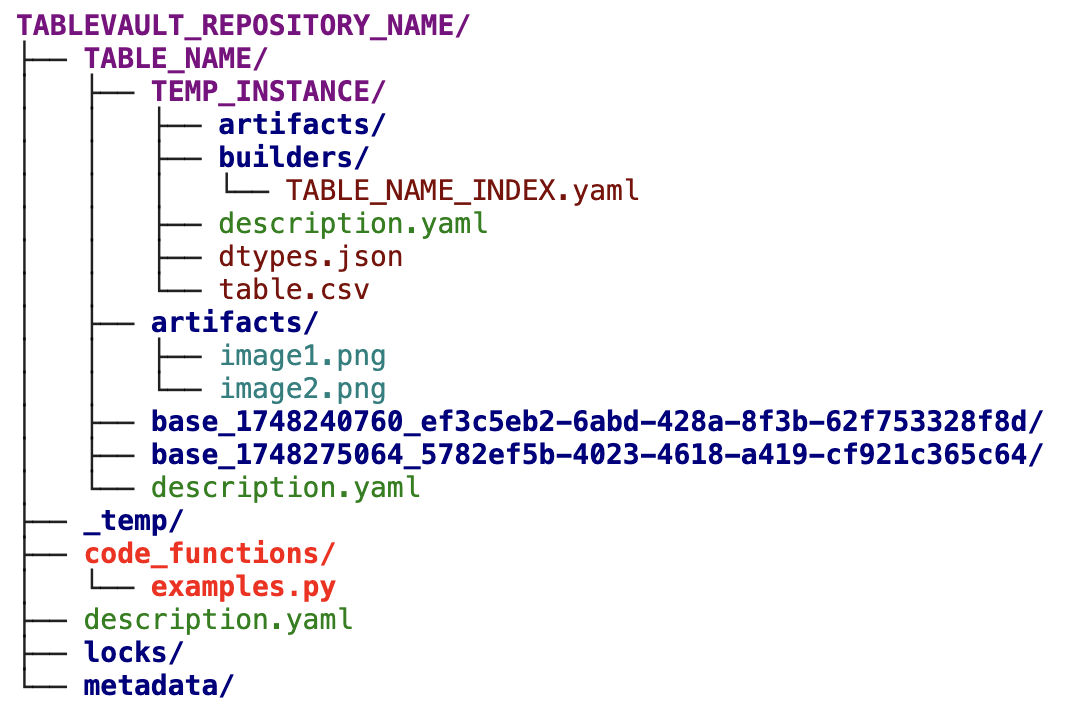

Physical Location

Internal TableVault Code

TableVault Code Folder Location

TableReference strings

TableReference strings enable you to dynamically pull data from any active instance to configure your builder files.

Instead of hard-coding values in the file, you can use a special << ... >> syntax to fetch information from tables, making your configurations more flexible and automated. For example, you can use a reference to:

  • Pull a specific setting from a central configuration table.
  • Get a list of column names to be generated.
  • Look up a value from another table based the index of the current row being processed.

You can specify which table to query, filter for specific rows, and select the exact columns you need. References can even be nested to handle complex, multi-step lookups. The system automatically retrieves the data—whether it's a single value, a number, or a list—and inserts it into your configuration where the reference was placed.

For the full document on TableReference strings, read the TableReference Guide.

Examples

Here is a simple example showing a TableReference string within a builder's arguments:

# Example: Using a TableReference to get a configuration value
arguments:
  model_version: '<<config_table.value[setting_name::'prod_model_version']>>'
  api_key: '<<secrets_table.key[service::'external_api']>>'

Artifacts

In TableVault, an artifact is any non-dataframe file, such as an image, log, or serialized model, that is linked to a specific value in a table dataframe. This creates an organized and powerful connection between structured data and related unstructured files.

Artifacts are linked to specific instance or table folders. Temporary instances always contain its own isolated artifact folder; this folder is moved to a materalized location after the library validates that each artifact storied has a reference in its corresponding dataframe.

Check out Worflow with Artifacts to see an exmple of artifacts being linked in TableVault.

Use Cases

Artifacts support diverse applications:

  • Machine Learning: Store model checkpoints, performance charts, logs.
  • Data Analysis: Link invoices or detailed CSVs to summarized data.
  • Computer Vision: Associate metadata rows with images/videos.
  • General Record-Keeping: Store manuals, warranties, marketing documents alongside product data.

Retrieval is straightforward via the TableVault API: retrieving the base dataframe with get_dataframe() automatically generates the path to each stored artifact (relative to the base TableVault directory).

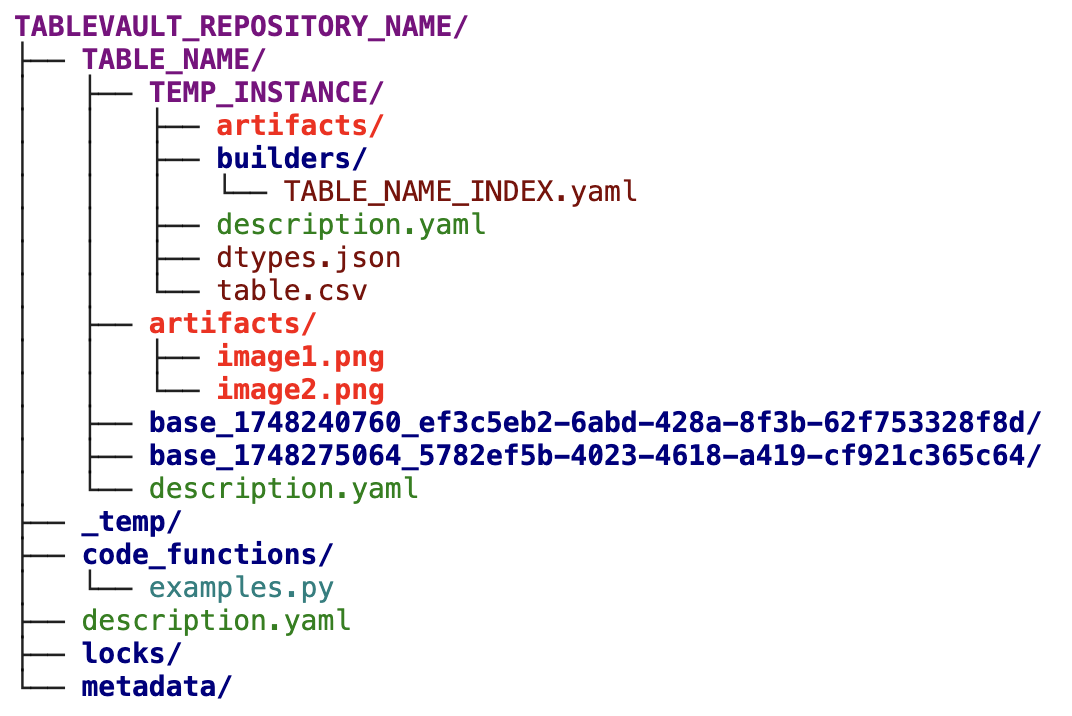

Physical Location

Internal TableVault Artifact

TableVault Artifact Folder Location
